NHS4-EL

Number:NHS4-EL

Easy operation and high efficiency tricot machine with touch screen interface are mainly used in apparel and upholstery fields for the production of stretch and non-stretch fabric, e.g.

Nova Tricot machines'  working speed can reach 2000rpm because of the advanced components used and effective motion features designed.

Share this post!
Inqueries Add To Basket

Quick Details

Product information

Easy operation and high efficiency tricot machine with touch screen interface are mainly used in apparel and upholstery fields for the production of stretch and non-stretch fabric, e.g. sportswear, lingerie, tulle, velvet, velour, super plush, automobile interiors, etc. Tricot machine electric controlled system makes the operation efficient and accurate. By the application of a brushing device that can create the loop on the fabric from the warp-knitted terry towel machine.

Tricot machine application of carbon bar can reduce the weight of the material and prevent the deformation of the knitting elements, which finally increase the machine production. Fine gauge up to E32 with the mono yarn 12D make very light and soft tulle. Tricot machine EL devices make patterns changing extremely convenient and faster.

We make a tricot machine from 2bar to 4bar with a wide width range from 42 inches to 290 inches. The concept of our tricot machine is based on easy operation and high efficiency. Touch screen interface can record all the production data and fabric parameter which can be transferred via the internet for better production management.

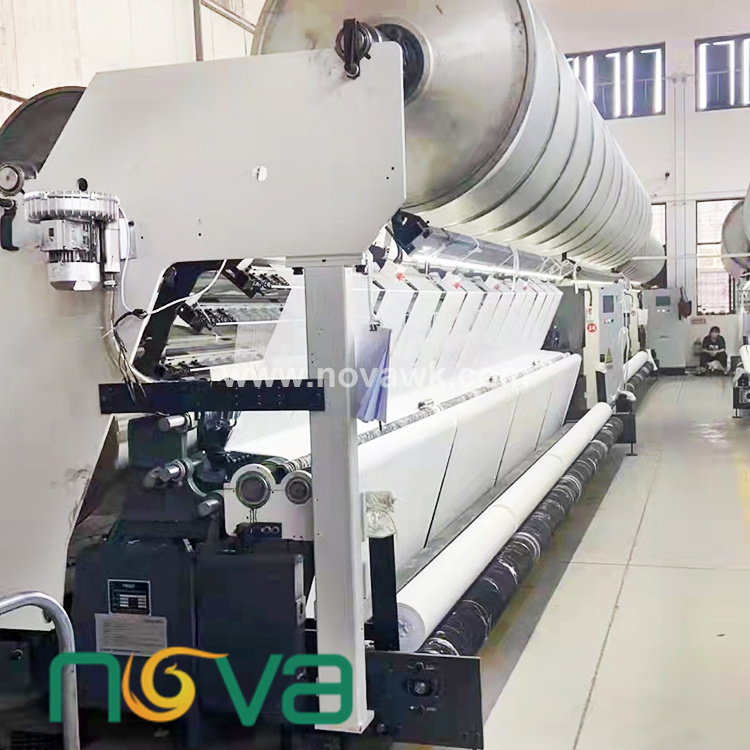

Machine Images

Main technical parameter

Working width 130",186",218",268",280"
Bar 2,3,4
Gauge E24,E28,E32
BARS/KNITTING ELEMENTS
Individual needle bar carbon bar standard
Tongue bar carbon bar standard
Sinker bar carbon bar standard
Ground bar carbon bar standard
Jacquard bar pizeo jacquard control system
WARP BEAM SUPPORT
Free standing application 30"/40"beams
MACHINE DRIVE AND CONTRO
Main motor invertor regulated control standard
WARP LET-OFF DEVICE
EBC electric control standard
CLOTH TAKE-UP DEVICE
EAC electric control standard
BATCHING DEVICE
Electric integrated centrally driven standard
Brushing device for terry towel   optional
Batching diameter
>PATTERN DRIVE
Pattern disc   standard
EL via electric motor optional
MONITORING&SOFTWARE
HMI monitoring and reporting via display standard
Nova Suite   optional
OIL SUPPLY
Heater exchanger heating and cooling optional
SAFETY
Light curtain depending on country of delivery optional
