NRDJ7/1-EL

Number:NRDJ7/1-EL

Jacquard double needle bar raschel machine refers to the double-bar raschel machines with the piezo jacquard technology.  Easy operation high efficiency double needle bar machine with touch screen interface are mainly used at upholstery and technical textile fields for the production of thick and volume fabric , e.g.

Share this post!
Inqueries Add To Basket

Quick Details

Product information

Easy operation high efficiency double needle bar machine with touch screen interface are mainly used at upholstery and technical textile fields for the production of thick and volume fabric , e.g. flannel, mink blanket, high pile, spacer, shoe material, pantyhose etc. The electric controlled system makes the operation efficient and accurate. By the adjusting of trick plate distance, the different thickness of the fabric can be quickly received.

The individual latch needle system and needle block system are available and changeable. Special designed sample machine make the sampling work become fast and convenient. The application of Jacquard bar at double raschel machine makes the designer has more space to created new fashion.

We make double needle bar machine from 4bar to 8bar with wide width range from 42 inch to 190 inch. The concept of our double needle bar machine is based on easy operation and high efficiency. Touch screen interface can record all the production data and fabric parameter which can be transferred via internet for better production management.

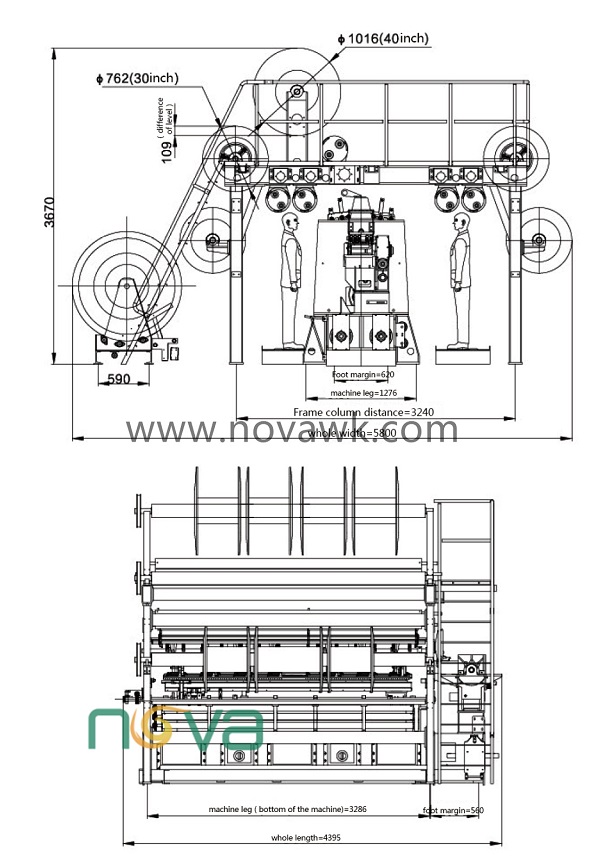

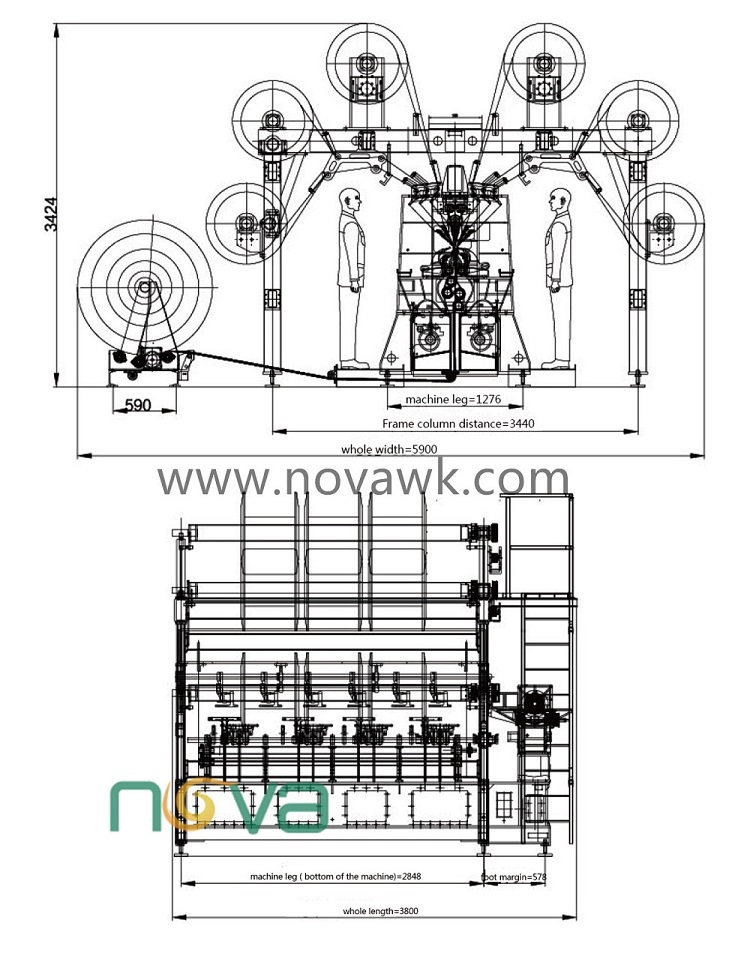

Machine image

FABRIC SPECIFICATIONS

Working width 90",100",138",188"
Gauge E16,E18,E22,E28
Bar 4,5,6,7,8 bars

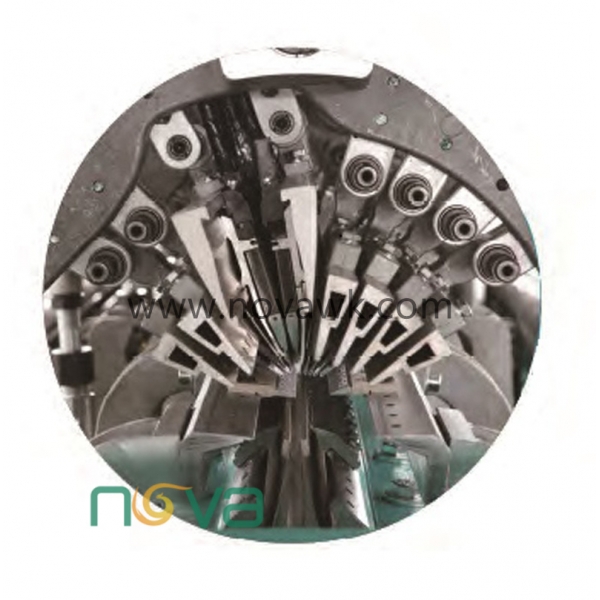

BARS/KNITTING ELEMENTS
Individual needle bar magneisum bar standard
Knockover comb bar magneisum bar standard
Sinker bar magneisum bar standard
Ground bar magneisum bar standard
Jacquard bar pizeo jacquard control system
  bar material of Carbon optional
WARP BEAM SUPPORT
Free standing application 30"/40"/50"beams
MACHINE DRIVE AND CONTROL
Main motor invertor regulated control standard
WARP LET-OFF DEVICE
EBC electric control standard
CLOTH TAKE-UP DEVICE
EAC electric control standard
BATCHING DEVICE
Electric friction driven standard
Batching diameter
PATTERN DRIVE
Pattern disc   standard
EL via electric motor optional
MONITORING&SOFTWARE
HMI monitoring and reporting via display standard
Nova Suite   optional
OIL SUPPLY
Heater exchanger heating and cooling optional
SAFETY
Light curtain depending on country of delivery optional
